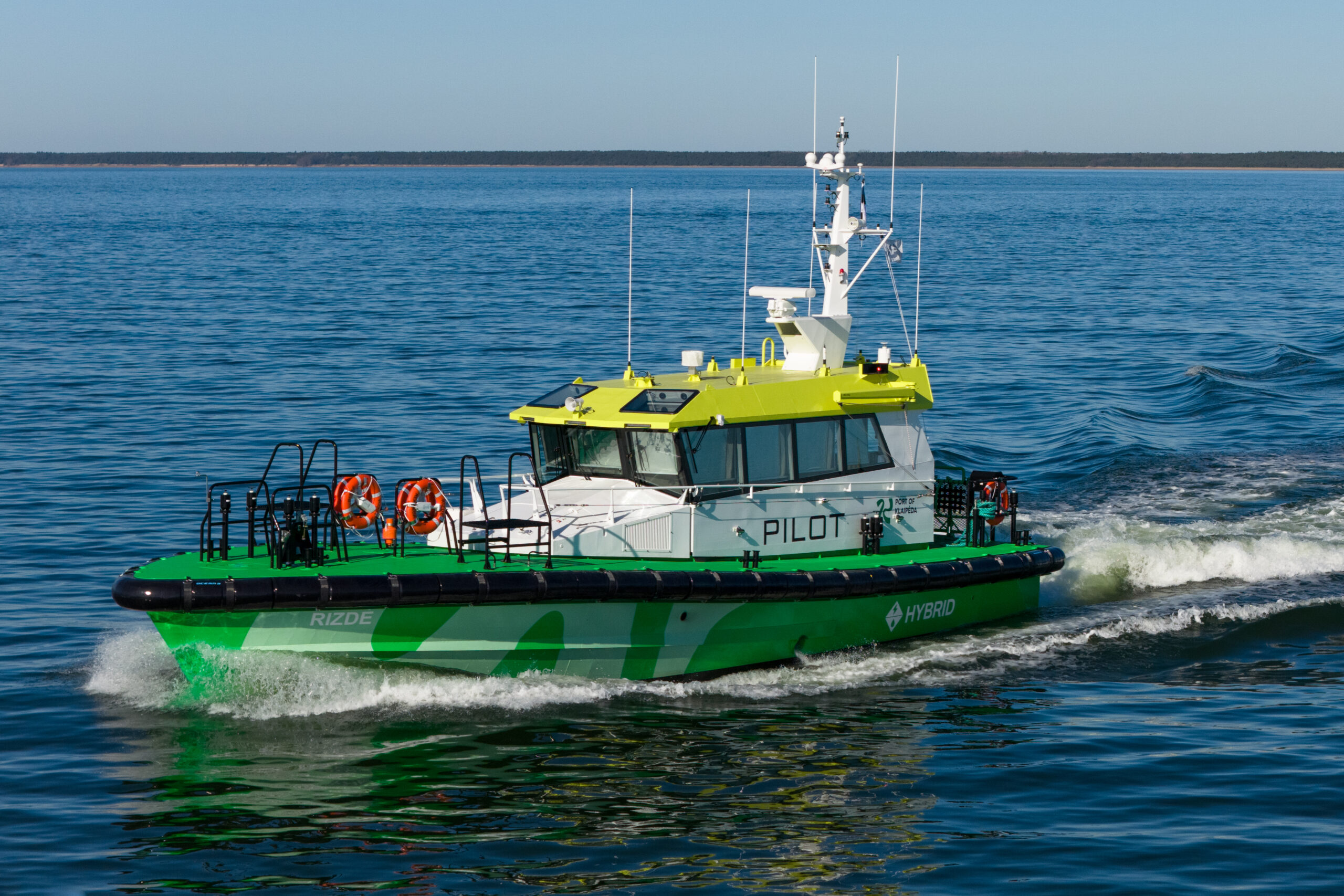

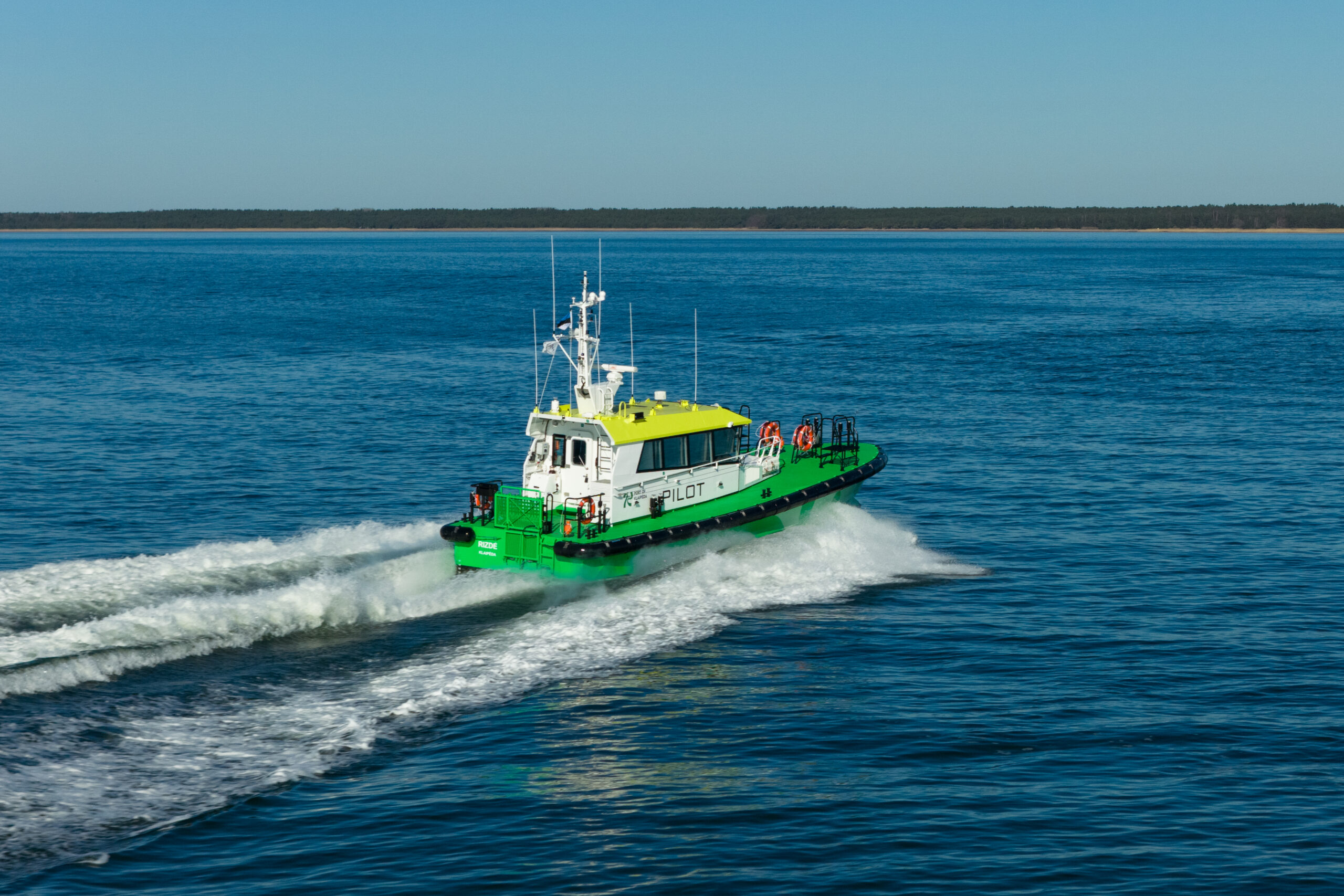

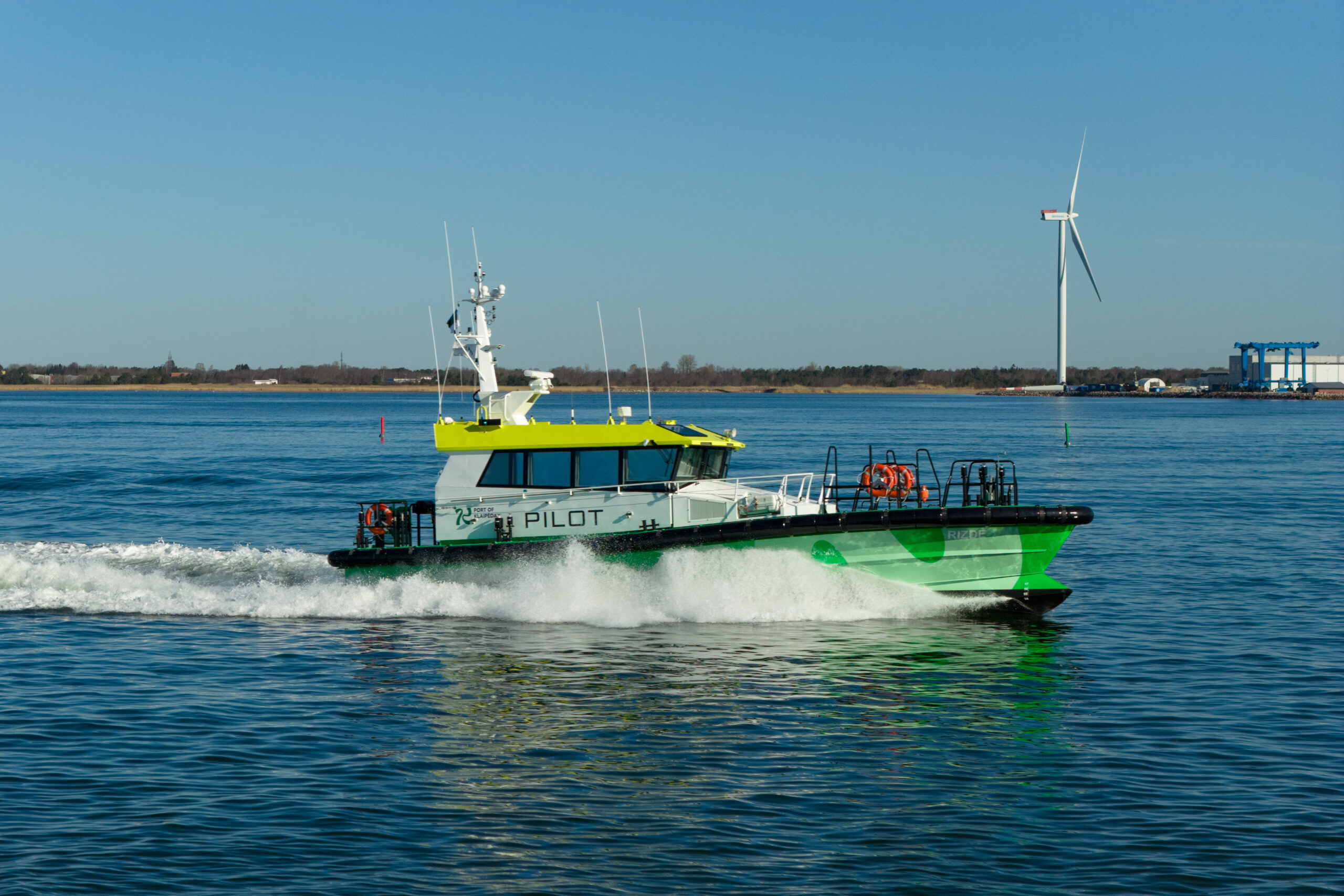

PILOT 17 WP HYBRID

17-metere electric-hybrid pilot boat

with fully electric range up to 20 nm

Produced

General

Material

Aluminium

Main functions

Pilot, crew transfer

Classification

Lloyd's Register SSC

Main dimensions

Length over all (m)

16,99

Beam over all (m)

5,6

Draught max (m)

1,55

Crew

1-2

Pilots/ passengers

6

Performance

Speed (kn)

25

Range (nm)

130

Speed electric (kn)

10

Range electric (nm)

20

Noise level in wheelhouse @ 25 kn (dB)

62

Propulsion system

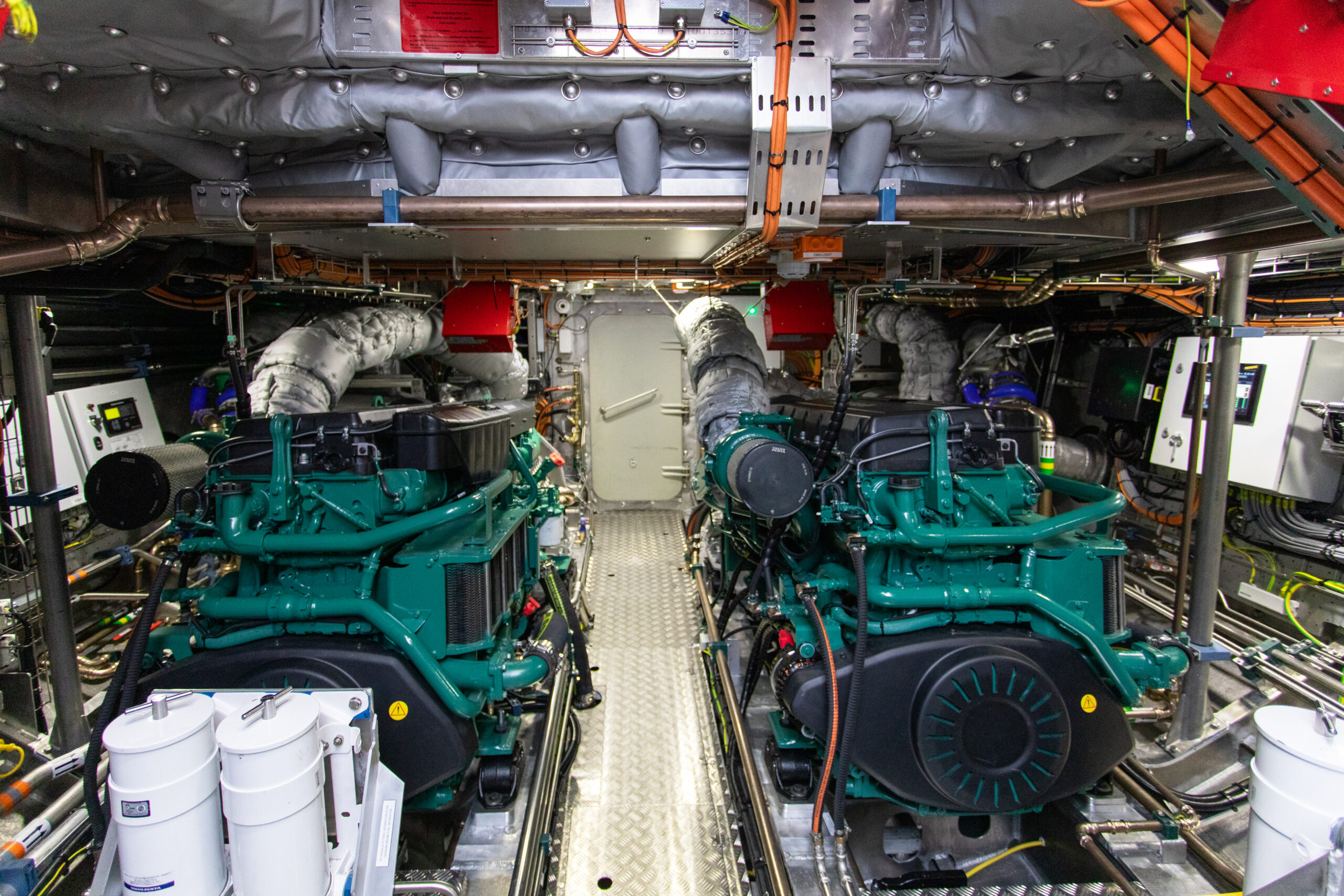

Main engines

2 x Volvo Penta D16 588 kw

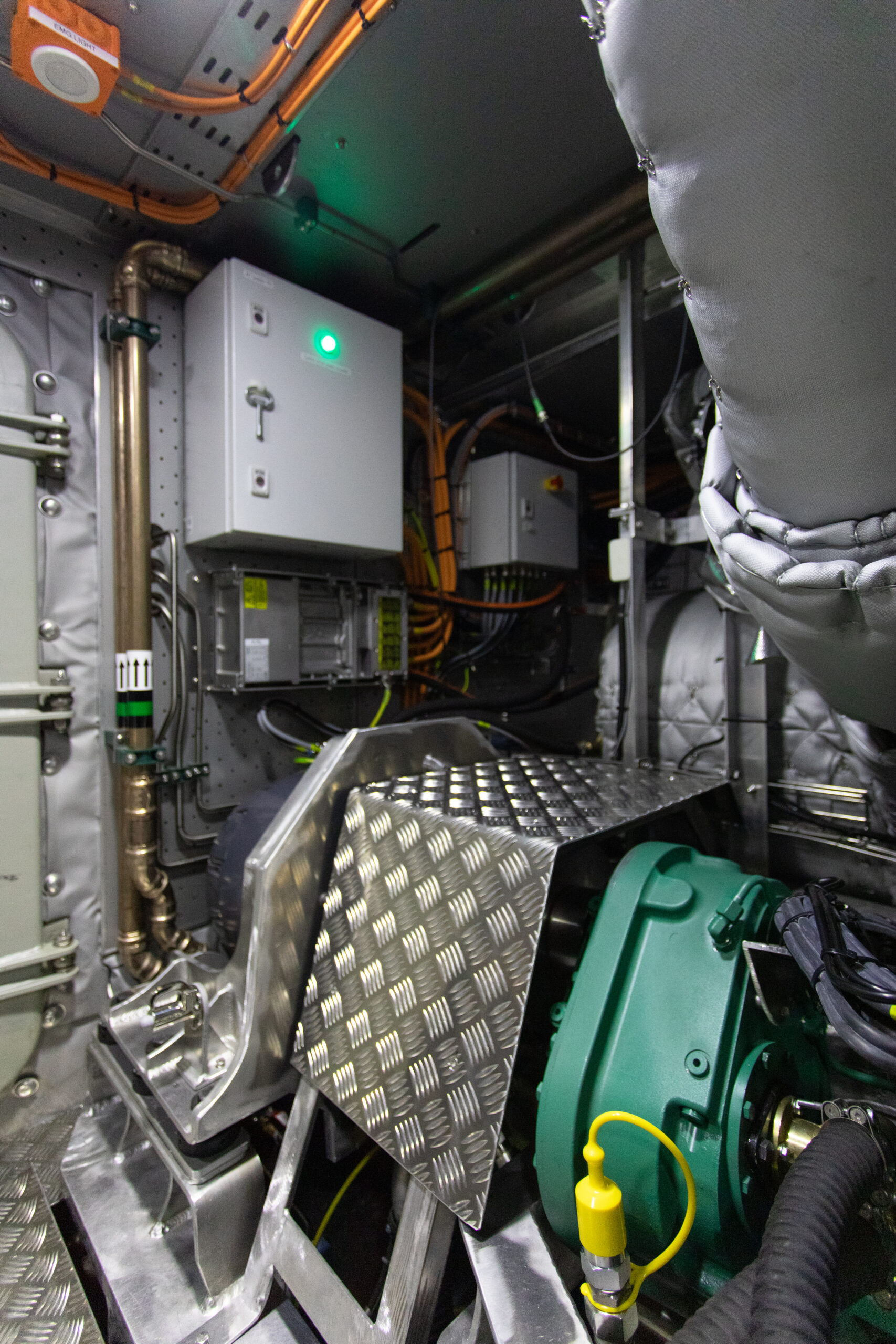

Gearboxes

2 x Twin Disc MGX

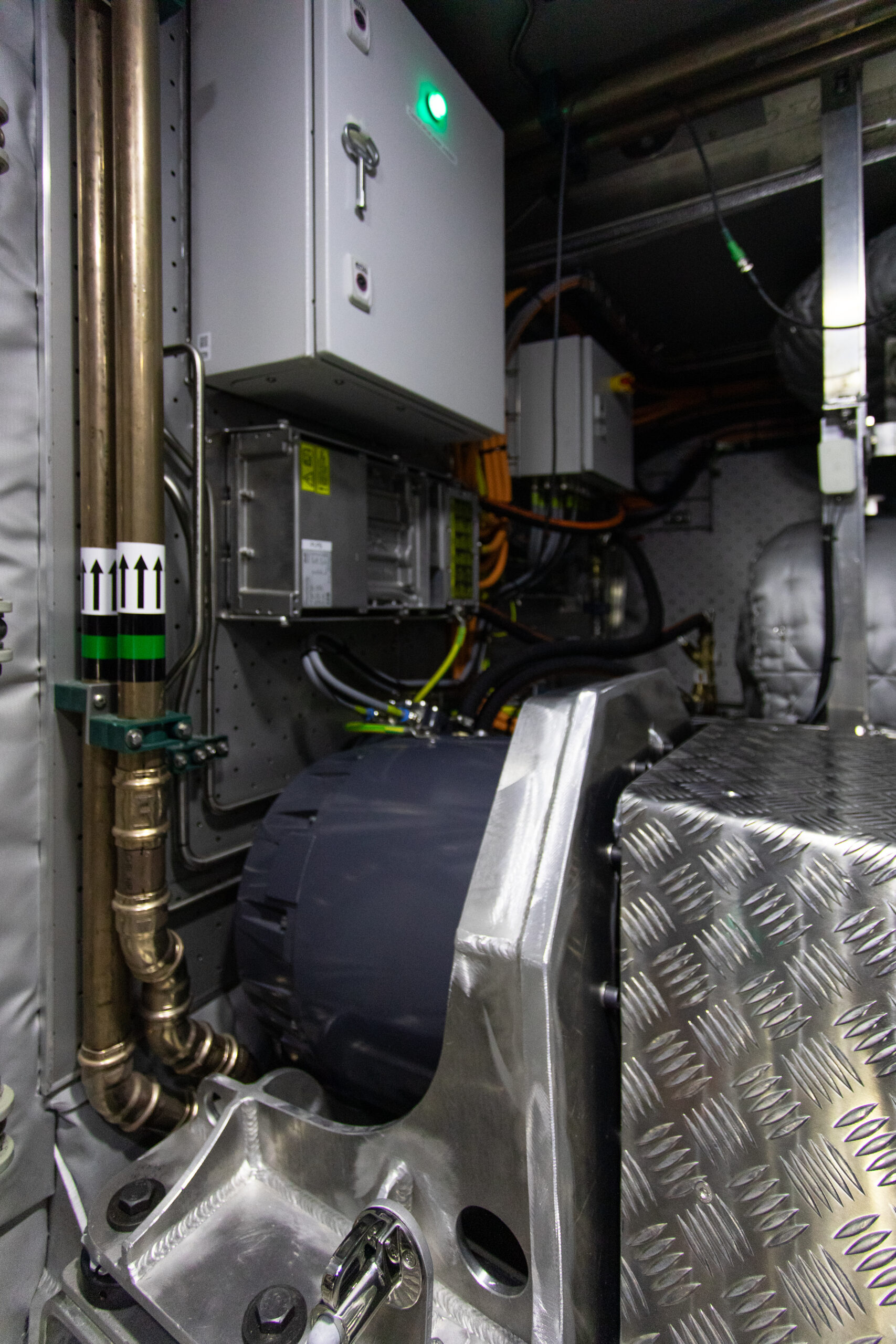

Electric motor

2 x Danfoss EM-PMI375-T800 130 kw

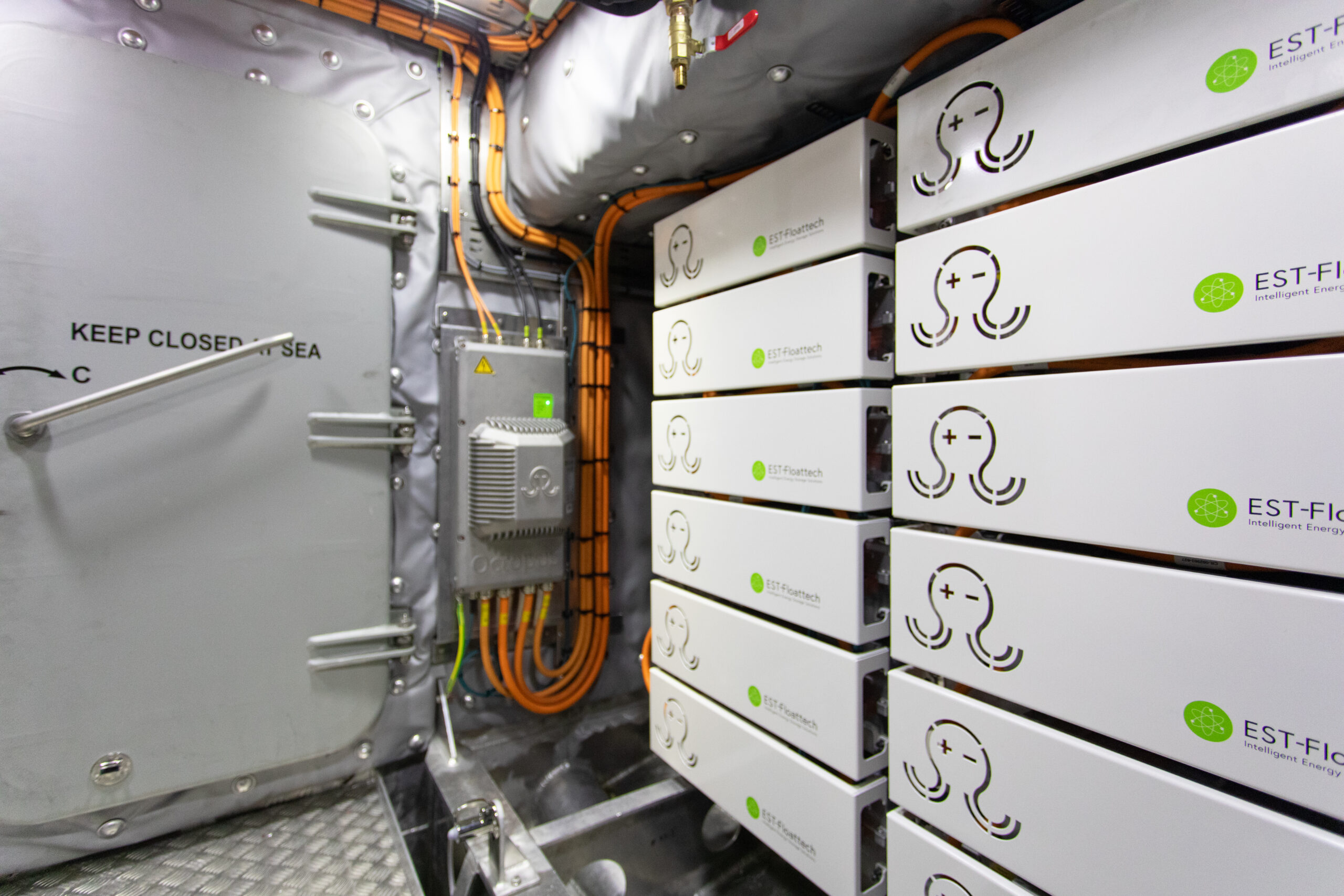

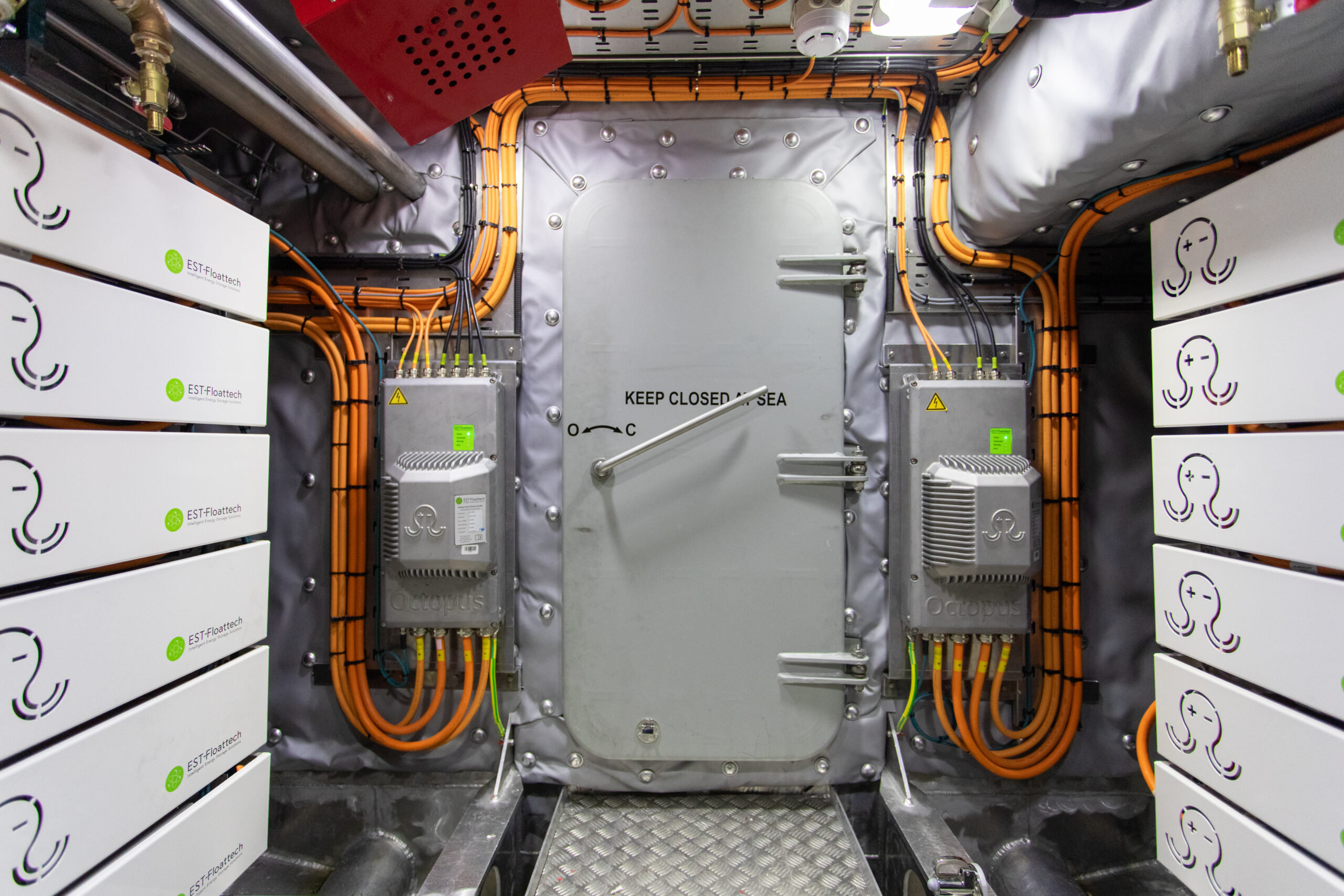

Energy storage system

Est-Floattech Octopus 240 kWh

Propulsion

2 x shaftlines with FPP

Tank capacities

Fuel (L)

1600

Fresh water (L)

120

Waste water (L)

120

Users

Port of Klaipeda, Lithuania
